Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |

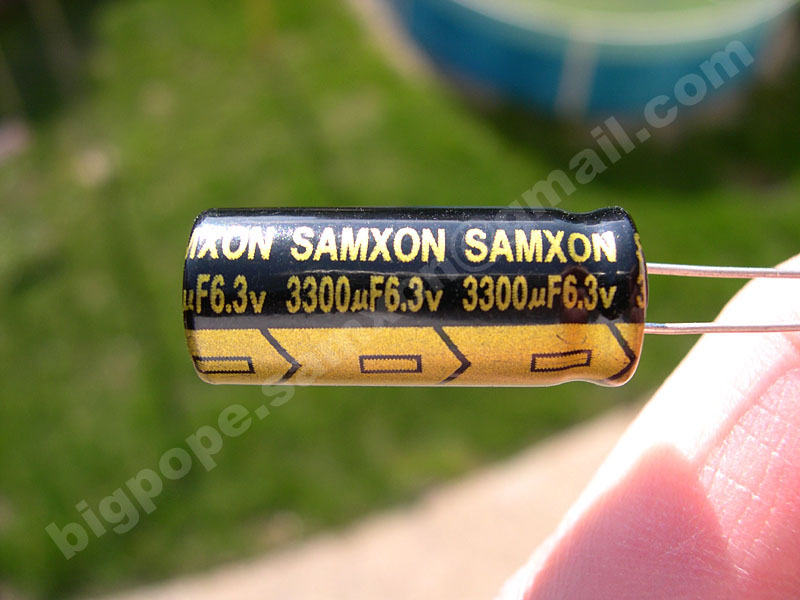

Samxon GA | 3300µF | 6,3 V | 10 mm | 25 mm | 0,0065 Ω | 4690 mA | 105 | 2000 h | 1.20 € | 45 | Super Low Impedance |

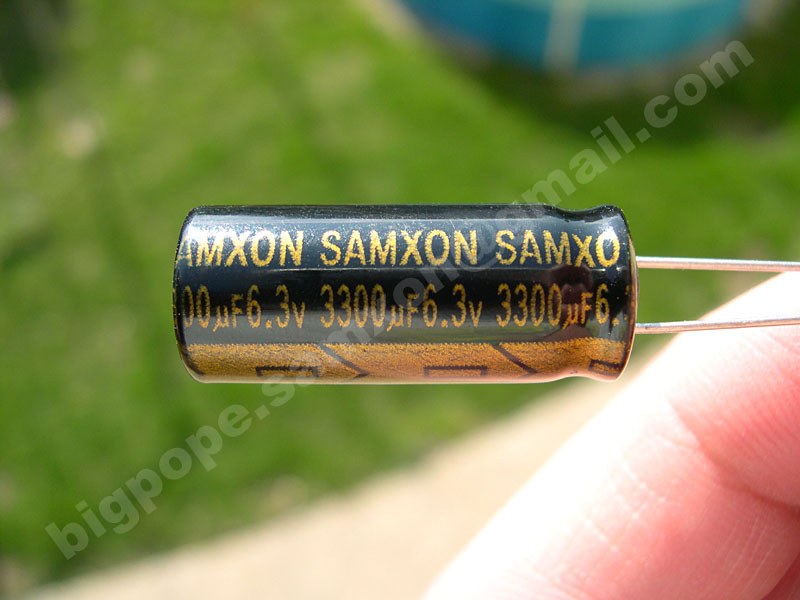

Samxon GC | 3300µF | 6,3 V | 10 mm | 25 mm | 0,009 Ω | 3190 mA | 105 | 2000 h | 0.60 € | 200+ | Ultra Low Impedance |

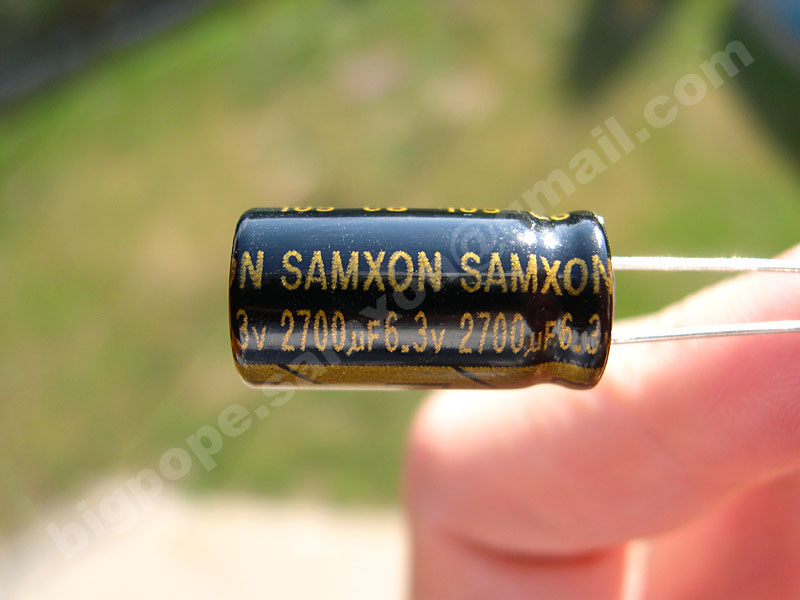

Samxon GD | 2700µF | 6,3 V | 10 mm | 20 mm | 0.013 Ω | 2550 mA | 105 | 2000 h | 0.80 € | 40- | Ultra Low Impedance |

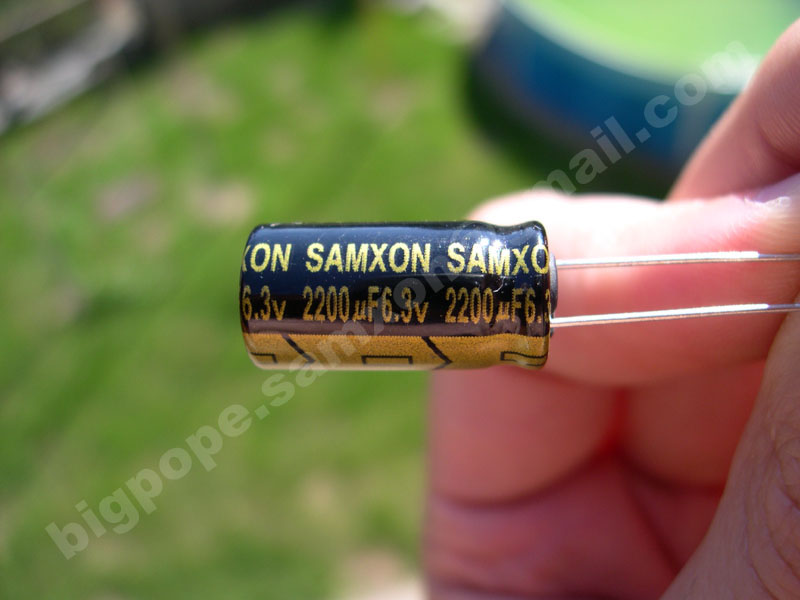

Samxon GC | 2200µF | 6,3 V | 10 mm | 20 mm | 0,010 Ω | 2900 mA | 105 | 2000 h | 0.60 € | 200+ | Ultra Low Impedance |

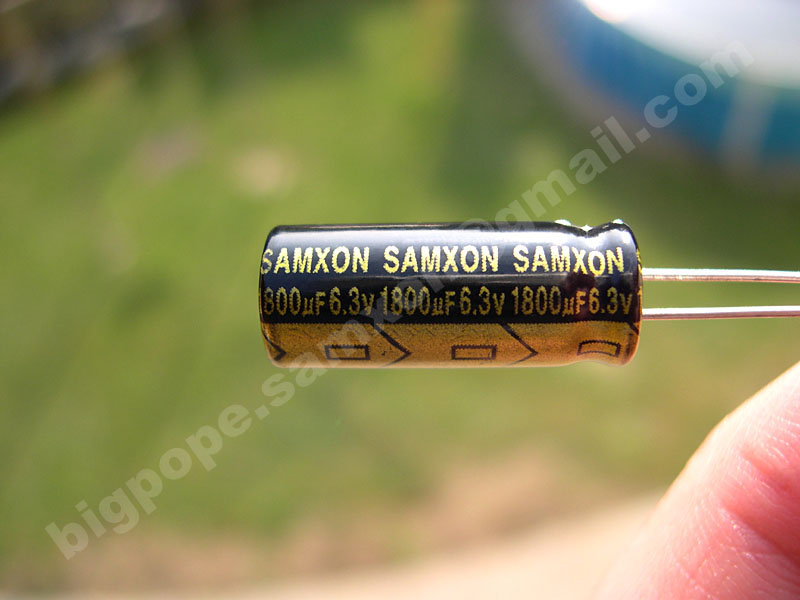

Samxon GC | 1800uF | 6.3 V | 8 mm | 20 mm | 0.012 Ω | 2220 mA | 105 | 2000 h | 0.65 € | 150- | Ultra Low Impedance |
Samxon GC | 1500µF | 6,3 V | 10 mm | 16 mm | 0,014 Ω | 2280 mA | 105 | 2000 h | - | 0 | Ultra Low Impedance |

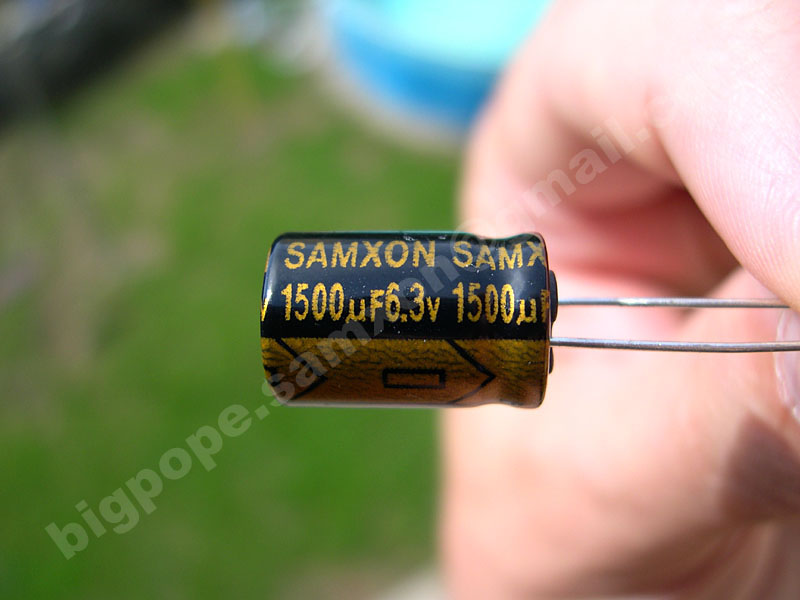

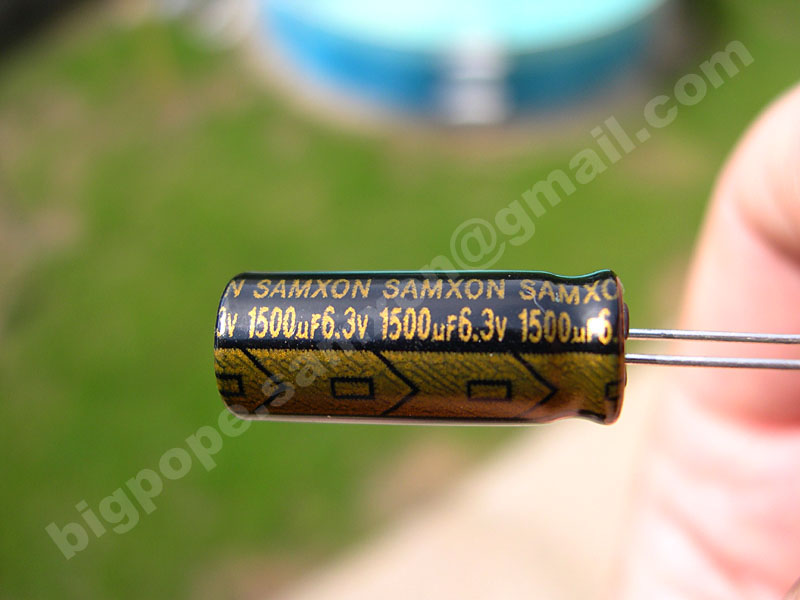

Samxon GC | 1500µF | 6,3 V | 8 mm | 20 mm | 0,012 Ω | 2220 mA | 105 | 2000 h | 0.60 € | 100 | Ultra Low Impedance |

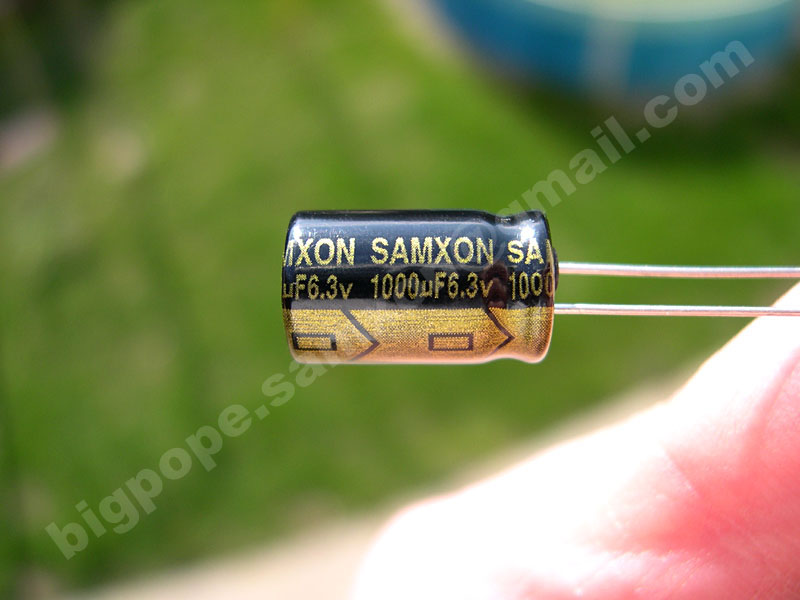

Samxon GC | 1000µF | 6,3 V | 8 mm | 10 mm | 0.020 Ω | 1700 mA | 105 | 2000 h | 0.50 € | 100+ | Ultra Low Impedance |

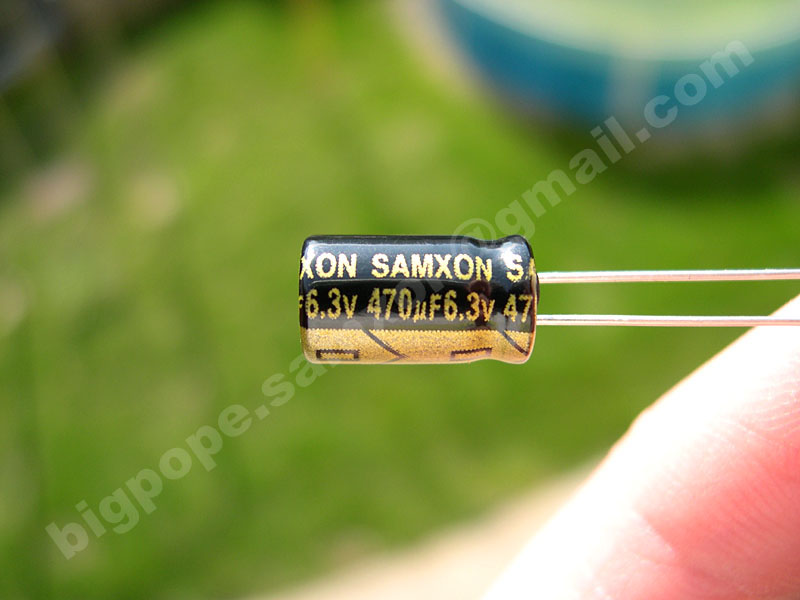

Samxon GD | 470µF | 6,3 V | 6.3 mm | 11 mm | 0.052 Ω | 995 mA | 105 | 2000 h | 0.60 € | 50 | Ultra Low Impedance |
X-CON ULR | 1000µF | 4 V | 8 mm | 8 mm | 0.007 Ω | 6640 mA | 105 | 2000 h | 1.60 € | 100 | polymer capacitors |
X-CON ULR | 470µF | 6,3 V | 6.3 mm | 11 mm | 0.008 Ω | 6100 mA | 105 | 2000 h | 1.60 € | 50 | polymer capacitors |
Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |

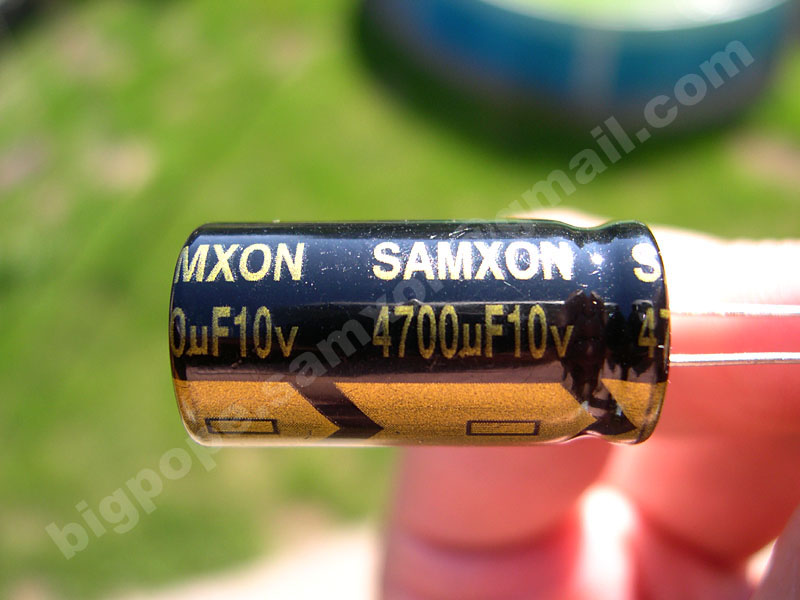

Samxon GD | 4700µF | 10 V | 12 mm | 25 mm | 0.011 Ω | 2960 mA | 105 | 2000 h | 0,95 € | 30 | Ultra Low Impedance |
Samxon GC | 1500µF | 10 V | 10 mm | 16 mm | 0.011 Ω | 2280 mA | 105 | 2000 h | 0,70 € | 100 | Ultra Low Impedance |
Samxon GC | 1000µF | 10 V | 8 mm | 20 mm | 0.012 Ω | 2220 mA | 105 | 2000 h | 0,60 € | 50 | Ultra Low Impedance |
Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |

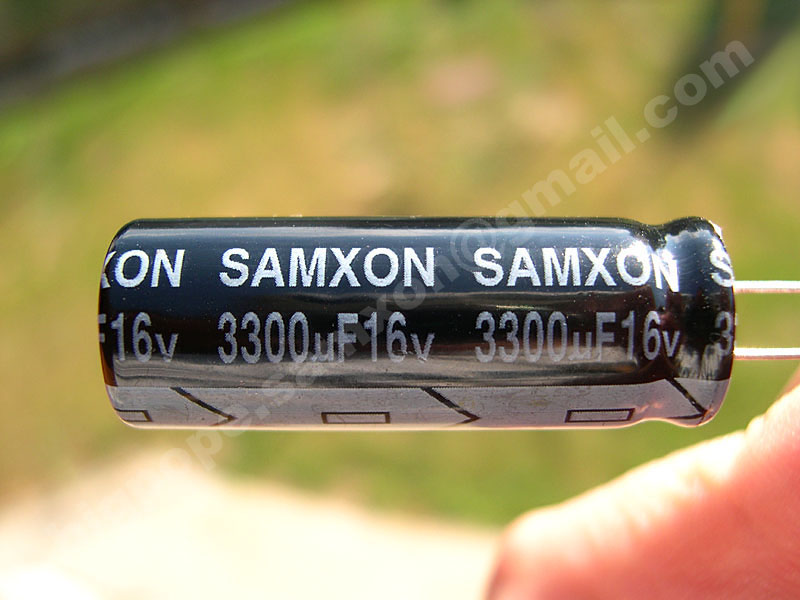

Samxon RS | 3300µF | 16 V | 12,5 mm | 35 mm | 0,015 Ω | 3400 mA | 105 | 7000 h | 0,70 € | 0 | Suitable for power supply's, Low esr |
Samxon RS | 3300µF | 16 V | 10 mm | 30 mm | 0.035 Ω | 3000 mA | 105 | 5000 h | 0.95 € | 0 | Low esr, Special size, Power supply |

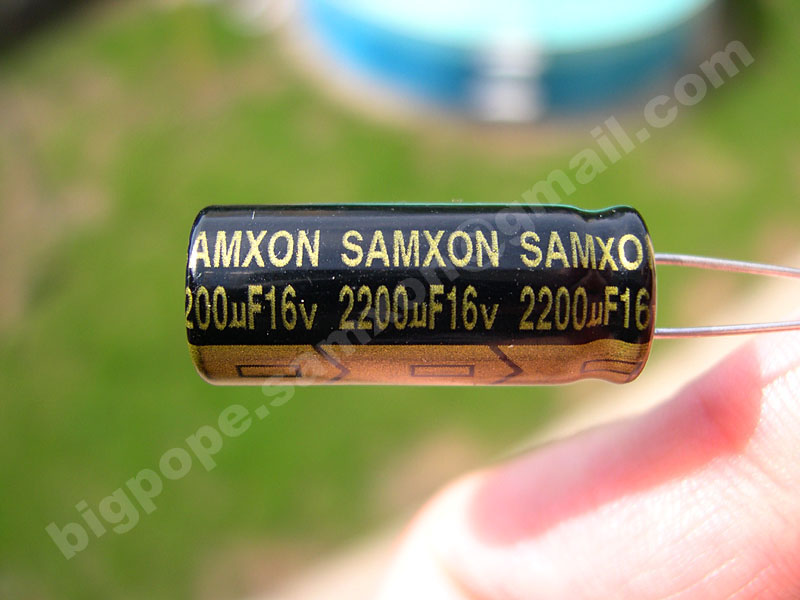

Samxon GD | 2200µF | 16 V | 10 mm | 25 mm | 0,012 Ω | 2800 mA | 105 | 2000 h | 0,70 € | 150+ | Ultra Low Impedance |

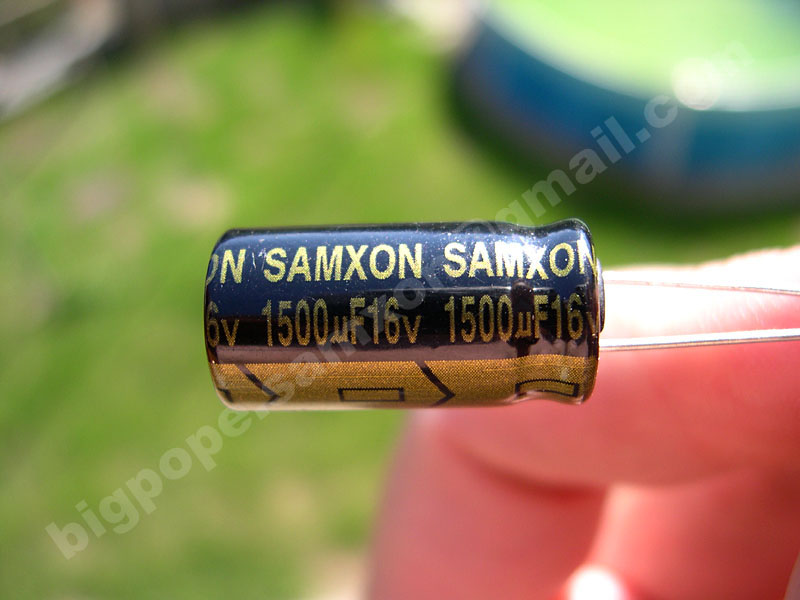

Samxon GC | 1500µF | 16 V | 10 mm | 20 mm | 0,010 Ω | 2900 mA | 105 | 2000 h | 0,60 € | 250+ | Ultra Low Impedance |

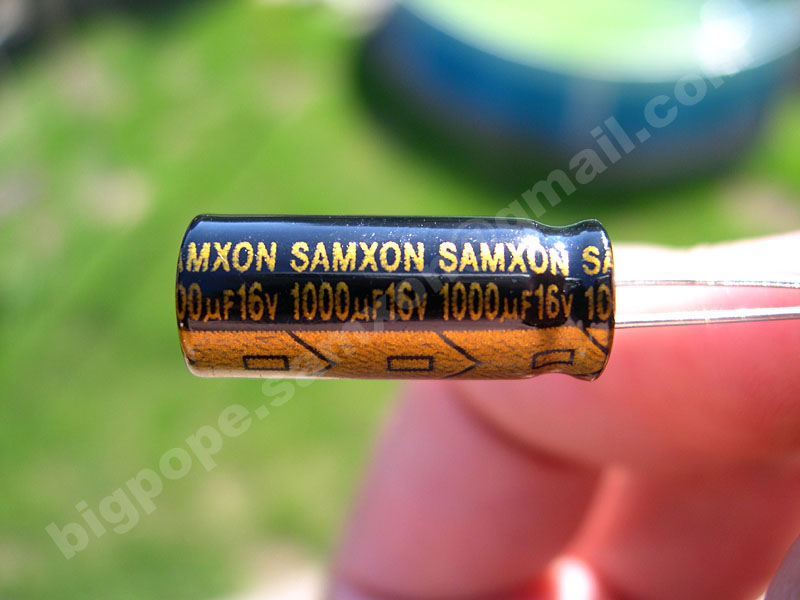

Samxon GC | 1000µF | 16 V | 8 mm | 20 mm | 0,012 Ω | 2220 mA | 105 | 2000 h | 0,60 € | 50 | Ultra Low Impedance |

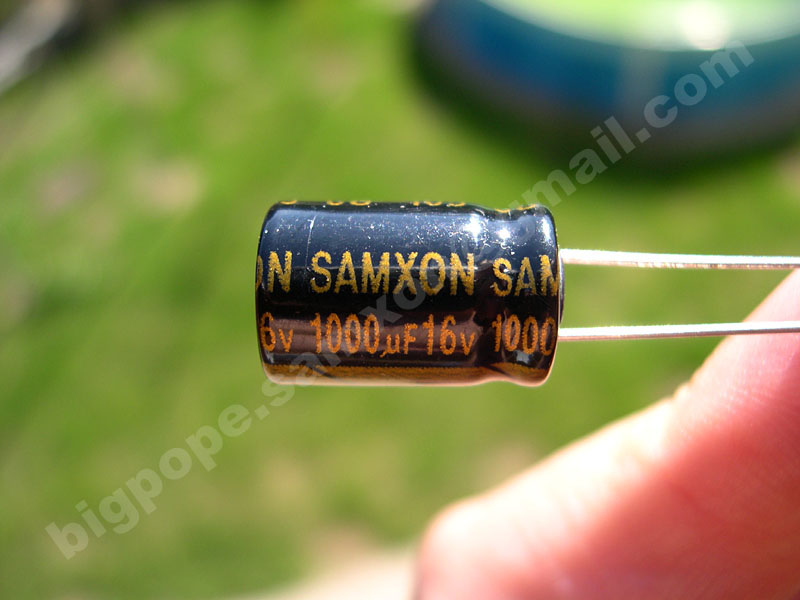

Samxon GD | 1000µF | 16 V | 10 mm | 16 mm | 0,019 Ω | 2000 mA | 105 | 2000 h | 0,70 € | 250+ | Ultra Low Impedance |
Samxon GD | 680µF | 16 V | 10 mm | 12,5 mm | 0.026 Ω | 1540 mA | 105 | 2000 h | 0,50 € | 10 | Ultra Low Impedance |

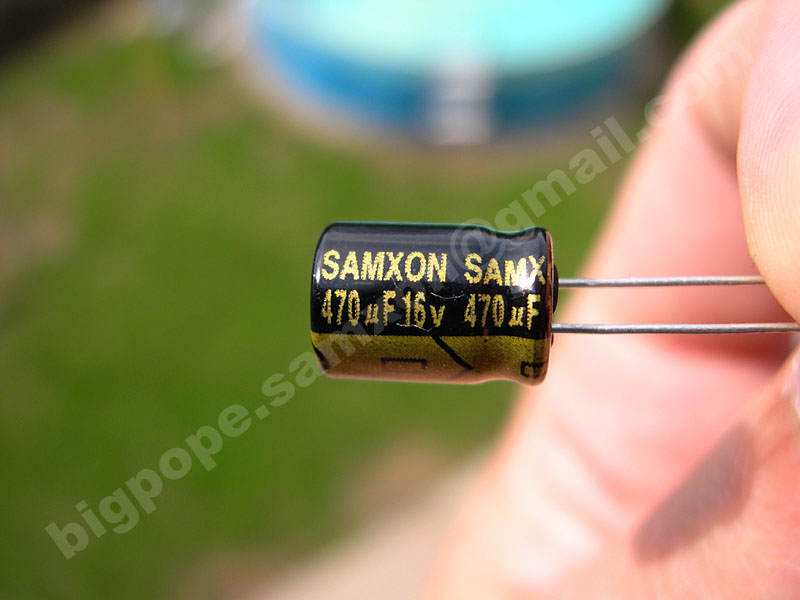

Samxon GC | 470µF | 16 V | 8 mm | 12 mm | 0.021 Ω | 1300 mA | 105 | 2000 h | 0,40 € | 114 | Ultra Low Impedance |

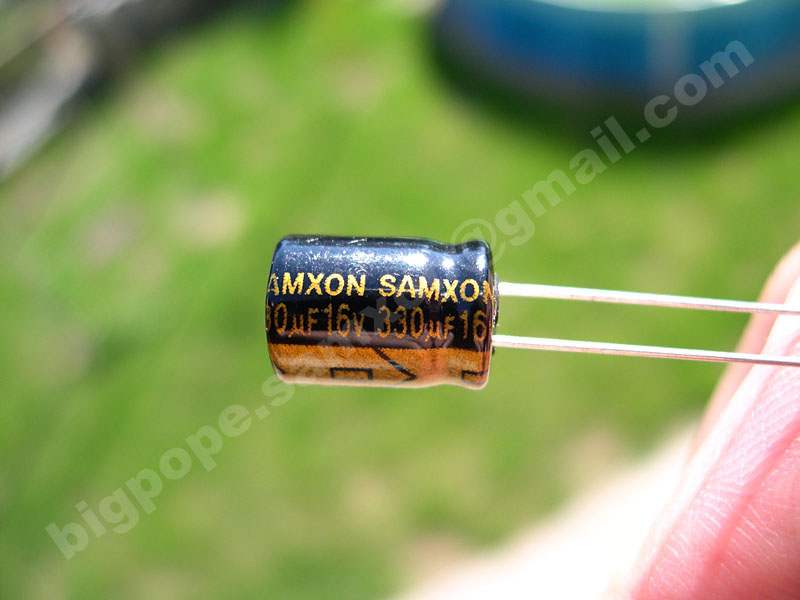

Samxon GD | 330µF | 16 V | 8 mm | 12 mm | 0.036 Ω | 1140 mA | 105 | 2000 h | 0,40 € | 10 | Ultra Low Impedance |

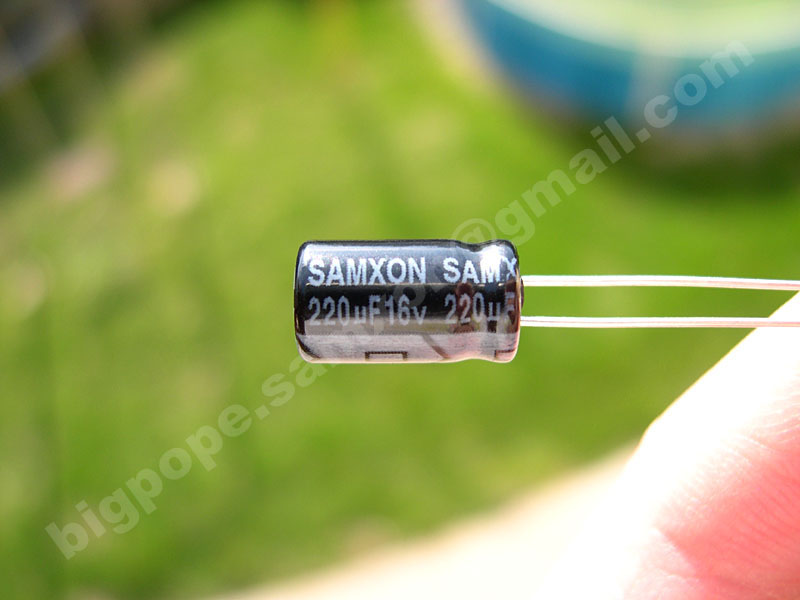

Samxon RS | 220µF | 16 V | 6,3 mm | 11 mm | 0.169 Ω | 561 mA | 105 | 3000 h | 0,40 € | 9 | Long Life Assurance, Low Impedance |
X-CON ULR | 470µF | 16 V | 10 mm | 11,5 mm | 0.010 Ω | 6100 mA | 105 | 2000 h | 1.60 € | 20 | polymer capacitors |
X-CON ULR | 470µF | 16 V | 8 mm | 11,5 mm | 0.011 Ω | 6100 mA | 105 | 2000 h | 1.80€ | 20 | polymer capacitors |
Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |

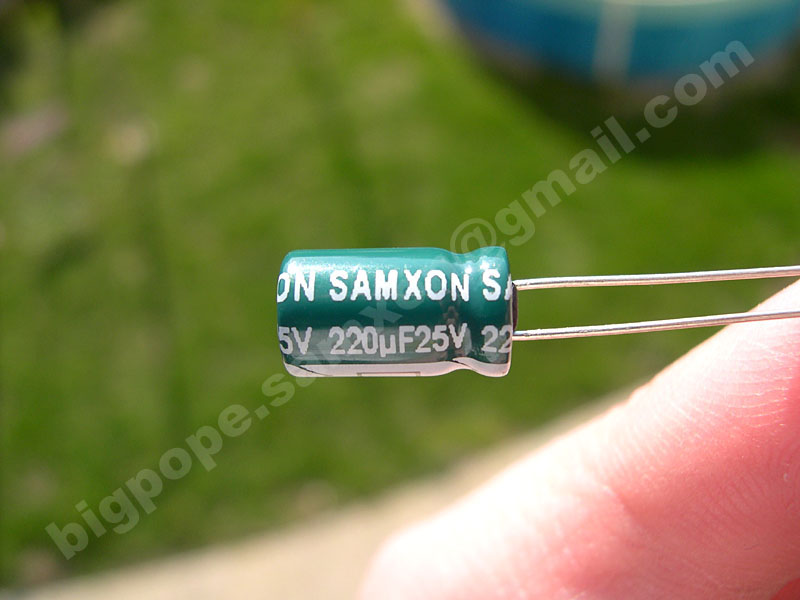

Samxon GK | 220µF | 25 V | 6.3 mm | 11 mm | 0.13 Ω | 500 mA | 105 | 2000 h | 0,40 € | 50 | |
Samxon GT | 220µF | 25 V | 8 mm | 12 mm | 0.13 Ω | 640 mA | 105 | 6000 h | 80 | ||

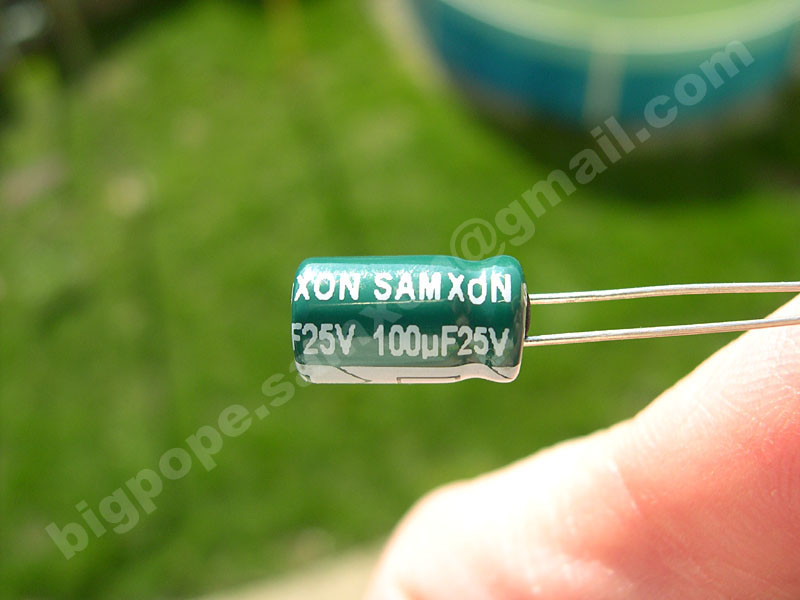

Samxon GK | 100µF | 25 V | 6.3 mm | 11 mm | 0.13 Ω | 405 mA | 105 | 2000 h | 0,40 € | 50 | |

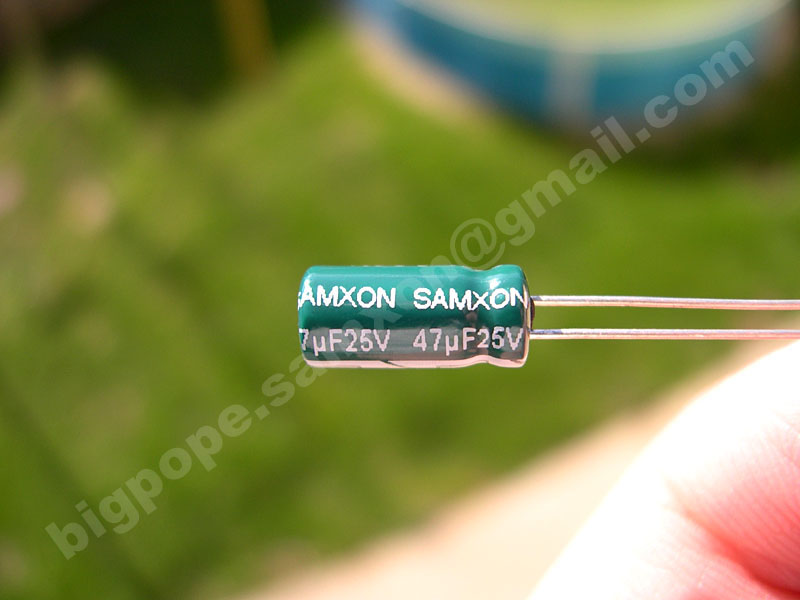

Samxon GK | 47µF | 25 V | 5 mm | 11 mm | 0.3 Ω | 285 mA | 105 | 2000 h | 0,35 € | 50 | |

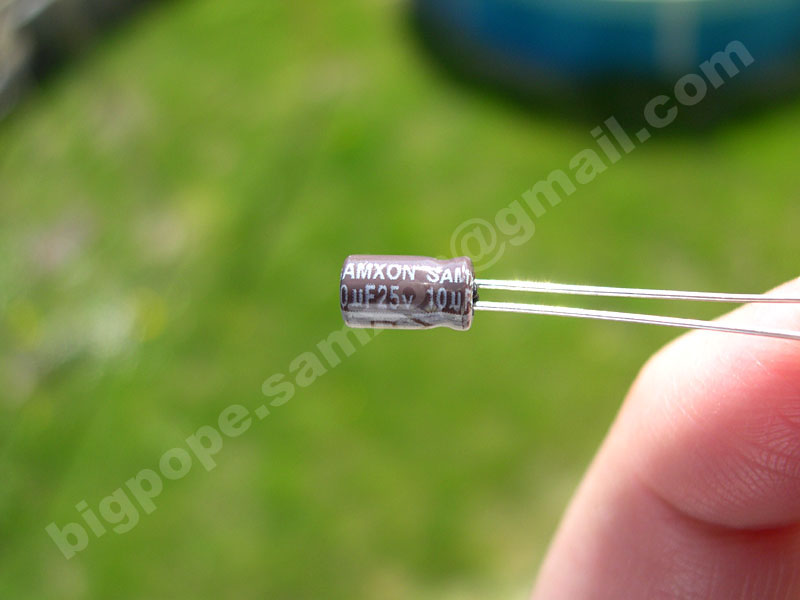

Samxon ZS | 10µF | 25 V | 4 mm | 7 mm | 3.3 Ω | 70 mA | 105 | 1000 h | 0,35 € | 50 | |
Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |
Samxon GF | 220µF | 50 V | 10 mm | 16 mm | 105 | 3000 h | 0.50 € | 10 | |||
Samxon GT | 100µF | 50 V | 8 mm | 12 mm | 0.170 Ω | 555 mA | 105 | 5000 h | 0.45 € | 100 | |

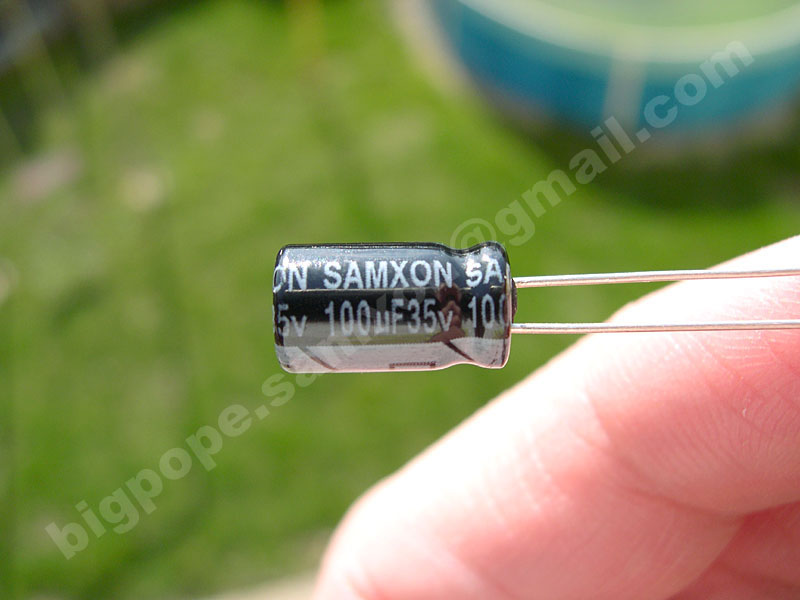

Samxon RS | 100µF | 35 V | 6,3 mm | 11 mm | 0.286 Ω | 298 mA | 105 | 3000 h | 0,35 € | 28 | Long Life Assurance, Low Impedance |
Samxon GF | 47µF | 50 V | 6.3 m | 11 mm | 0.300 Ω | 295 mA | 105 | 2000 h | 0.45 € | 100 | |

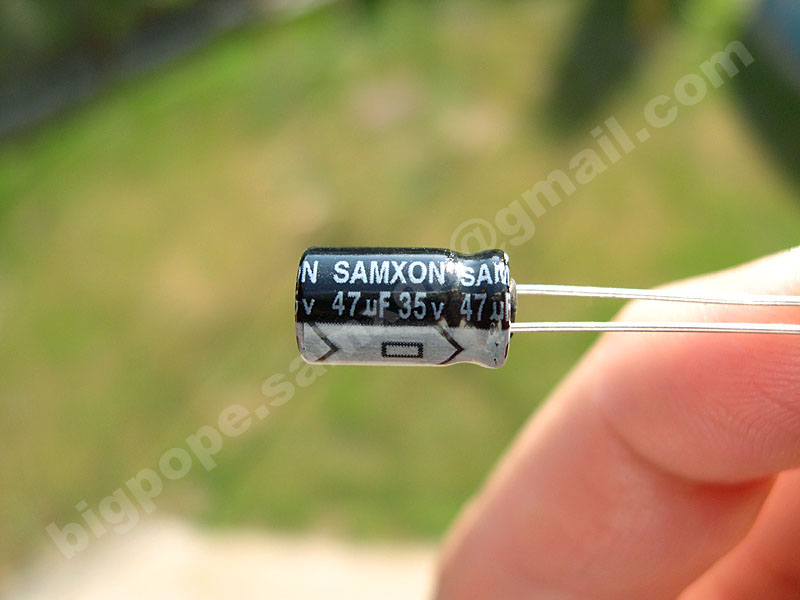

Samxon RS | 47µF | 35 V | 6,3 mm | 11 mm | 0.286 Ω | 298 mA | 105 | 3000 h | 0,35 € | 30 | Long Life Assurance, Low Impedance |

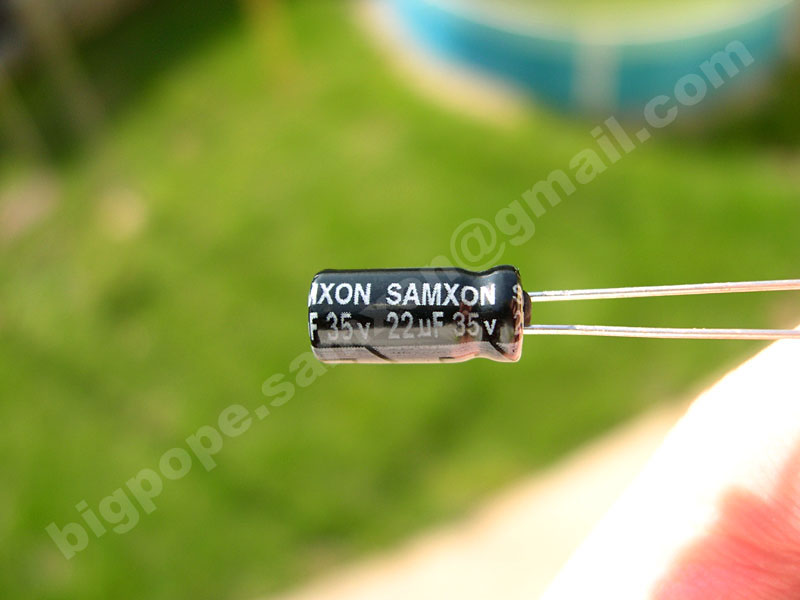

Samxon RS | 22µF | 35 V | 5 mm | 11 mm | 0.754 Ω | 184 mA | 105 | 3000 h | 0,35 € | 30 | Long Life Assurance, Low Impedance |

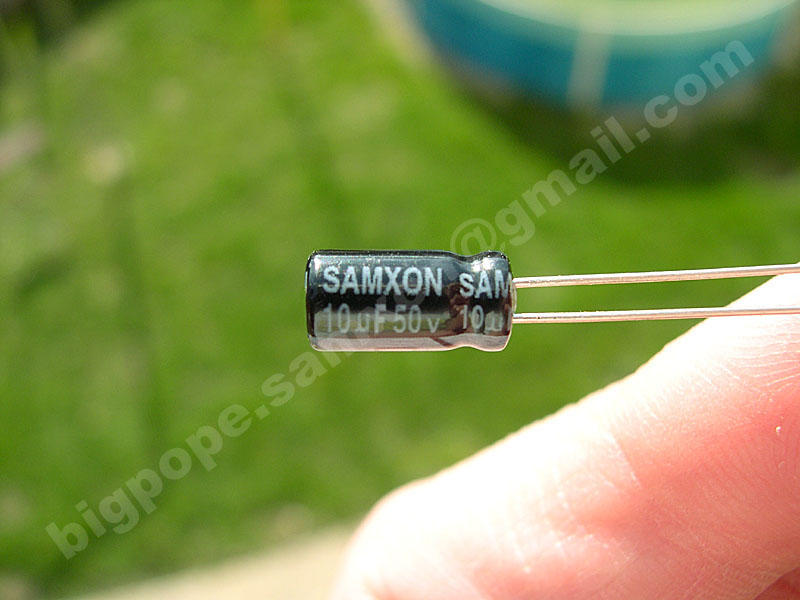

Samxon RS | 10µF | 50 V | 5 mm | 11 mm | 1.5 Ω | 100 mA | 105 | 3000 h | 0,35 € | 30 | Long Life Assurance, Low Impedance |

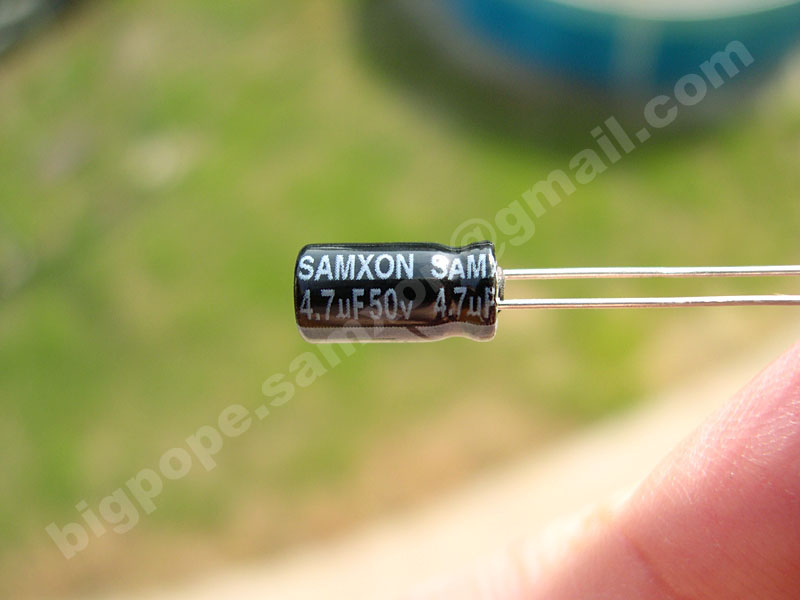

Samxon RL | 4,7µF | 50 V | 5 mm | 11 mm | 41 mA | 105 | 3000 h | 0,35 € | 50 | ||

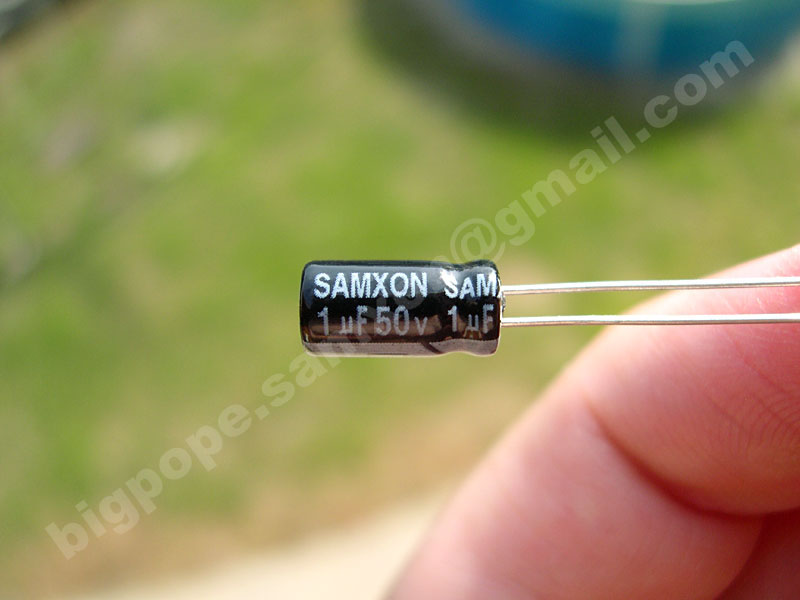

Samxon RL | 1µF | 50 V | 5 mm | 11 mm | 14 mA | 105 | 3000 h | 0,35 € | 50 |
GA Datasheet | GC Datasheet | GD Datasheet | GK Datasheet | GF Datasheet |
RS Datasheet | RL Datasheet | ZS Datasheet | GT Datasheet | ULR Datasheet |
Pictures are from "capsmod.net"
Stock not exactly up to date. Last update 22-01-10 (dd-mm-yy)
This is my personal stash, The reason
why i sell (motherboard) capacitors is because it can be hard to get
good quality capacitors. I guarantee that the Samxon capacitors are genuine (Direct from factory) the caps below are from other sources like ebay. If you think some of those capacitors are fake please notify me (with prove) |
Type | Capacity | Voltage | Diameter | Height | PCM | ESR | Ripple | Temp | Load Life | Price | Stock | Note |
Elna R2O | 100µF | 25 V | 6.3 mm | 11 mm | 2.5 | 85 | 2000 h | 0.40 € | 100 | Audio grade capacitors | ||
Type | Capacity | Voltage | Diameter | Height | PCM | ESR | Ripple | Temp | Load Life | Price | Stock | Note |
Chemi-Con KZJ | 2200µF | 6.3 V | 8 mm | 20 mm | 0.012Ω | 2350 | 105 | 2000 h | 0.65 € | 100- | ||
Chemi-Con KZE | 2200µF | 6.3 V | 10 mm | 25 mm | 0.022Ω | 2150 | 105 | 5000 h | 1.20 € | 200- | From Digi-Key | |

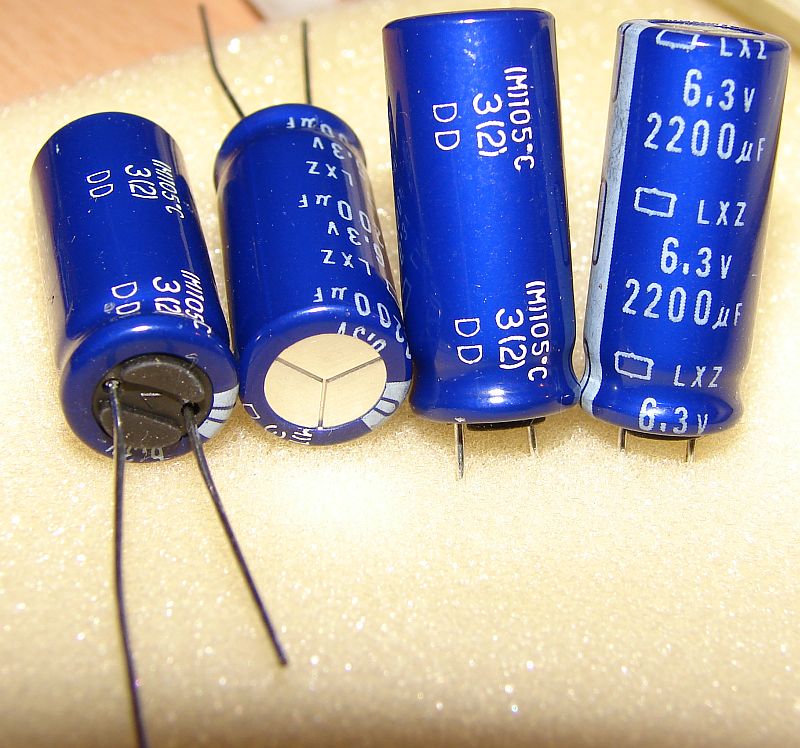

Chemi-Con LXZ | 2200µF | 6.3 V | 10 mm | 25 mm | 0.045Ω | 1440 | 105 | 5000 h | 0.50 € | 350 | Suitable for power supply's, Low esr | |
Chemi-Con KZJ | 1800µF | 6.3 V | 8 mm | 20 mm | 0.012Ω | 2350 | 105 | 2000 h | 0.65 € | 150 | Ultra Low Impedance | |
Chemi-Con KZE | 1500µF | 6.3 V | 10 mm | 20 mm | 0.023Ω | 1820 | 105 | 5000 h | 1.10 € | 500- | From Digi-Key | |

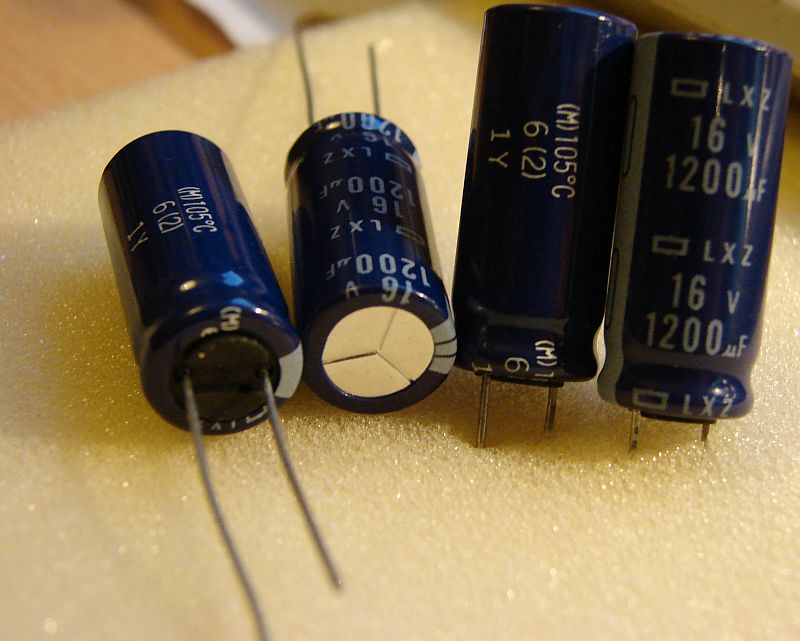

Chemi-Con LXZ | 1200µF | 16 V | 10 mm | 25 mm | 0.045Ω | 1440 | 105 | 5000 h | 0.70 € | 50 | Suitable for power supply's | |

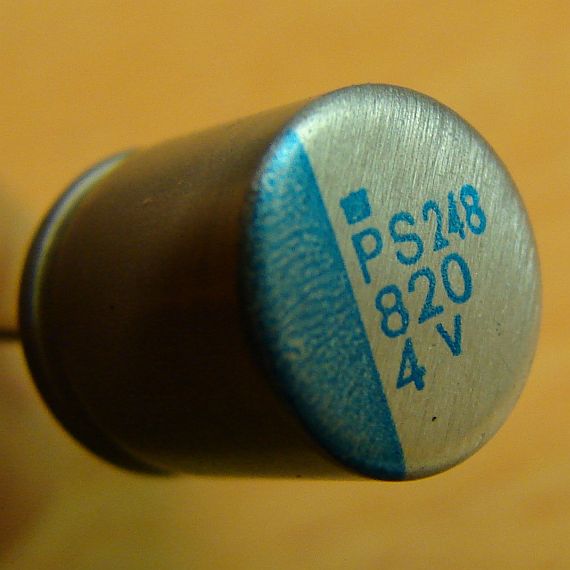

Chemi-Con PS | 820µF | 4 V | 10 mm | 12.5mm | 0.008Ω | 5500 | 105 | 2000 h | 0.70 € | 60 | Conductive Polymer | |
Chemi-Con LXZ | 330µF | 6.3 V | 6.3mm | 11.5mm | 0.25Ω | 290 | 105 | 2000 h | 0.35 € | 50 | Suitable for power supply's | |
Chemi-Con ASF | 100µF | 50 V | 8 mm | 12.5mm | 3.5mm | 85 | 0.40 € | 250- | Audio grade capacitors |
KZE Datasheet | KZJ Datasheet |
PS Datasheet | LXZ Datasheet |
Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |
Nichicon HM | 1800µF | 16 V | 10 mm | 20 mm | 0.012Ω | 2800 | 105 | 2000 h | 0.60€ | 40 | Datecode: H0143 |
Nichicon HZ | 1500µF | 16 V | 10 mm | 20 mm | 0.007Ω | 3770 | 105 | 2000 h | 1.00€ | 50 | Super low impedance |
Nichicon HD | 470µF | 10 V | 8 mm | 11.5mm | 0.072Ω | 760 | 105 | 3000 h | 0.40€ | 1000 | |

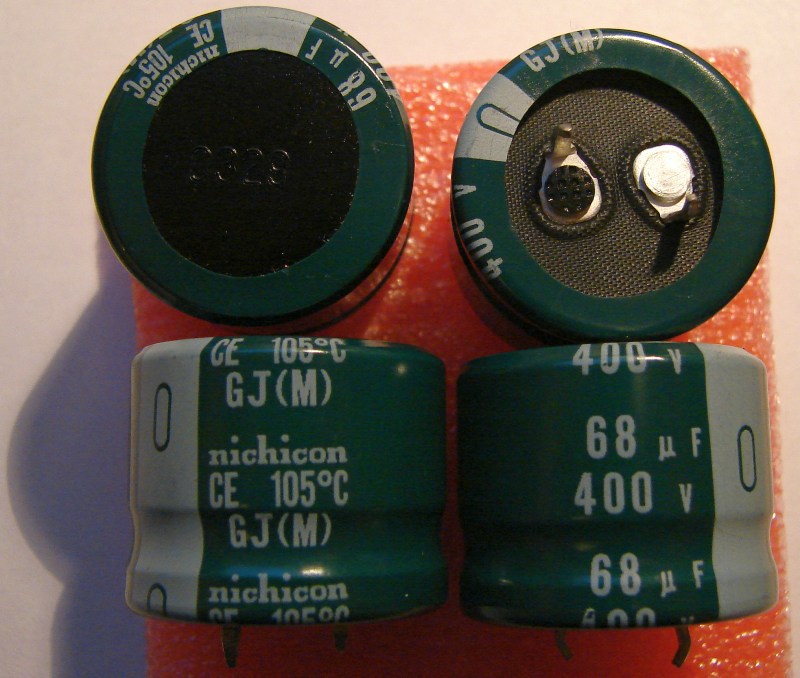

Nichicon GJ | 68µF | 400 V | 25 mm | 20 mm | - | - | 105 | 3000 h | 3.50€ | 4 | |
Nichicon ? | 10µF | 35 V | 105 | 0.20€ | A401 | ||||||

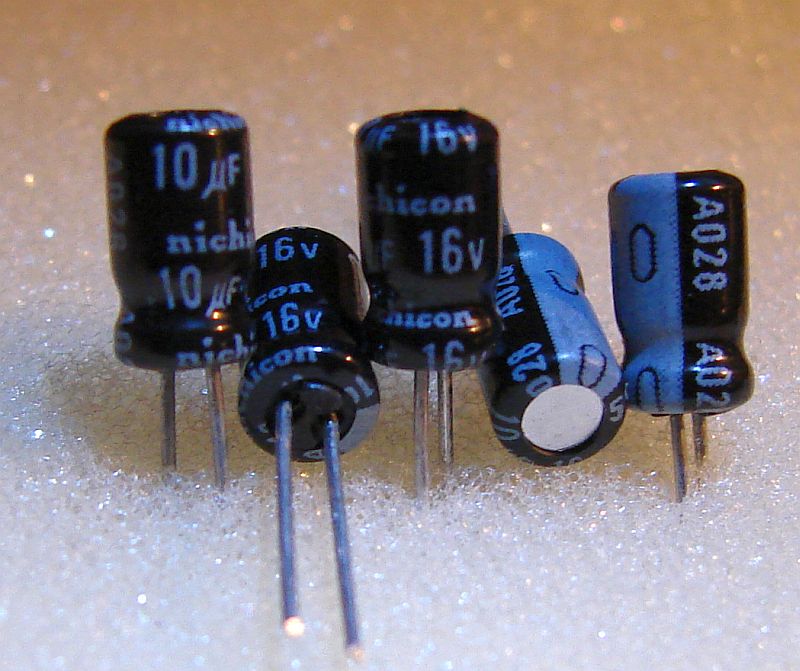

Nichicon ? | 10µF | 16 V | 105 | 0.20€ | 2000 | A028 |
HD Datasheet | HM Datasheet | HZ Datasheet | GJ Datasheet |
Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |
Rubycon MBZ | 3300µF | 6.3 V | 10 mm | 23 mm | 0,012Ω | 2800 | 105 | 2000 h | 0.75 € | 100 | Ultra Low Impedance |

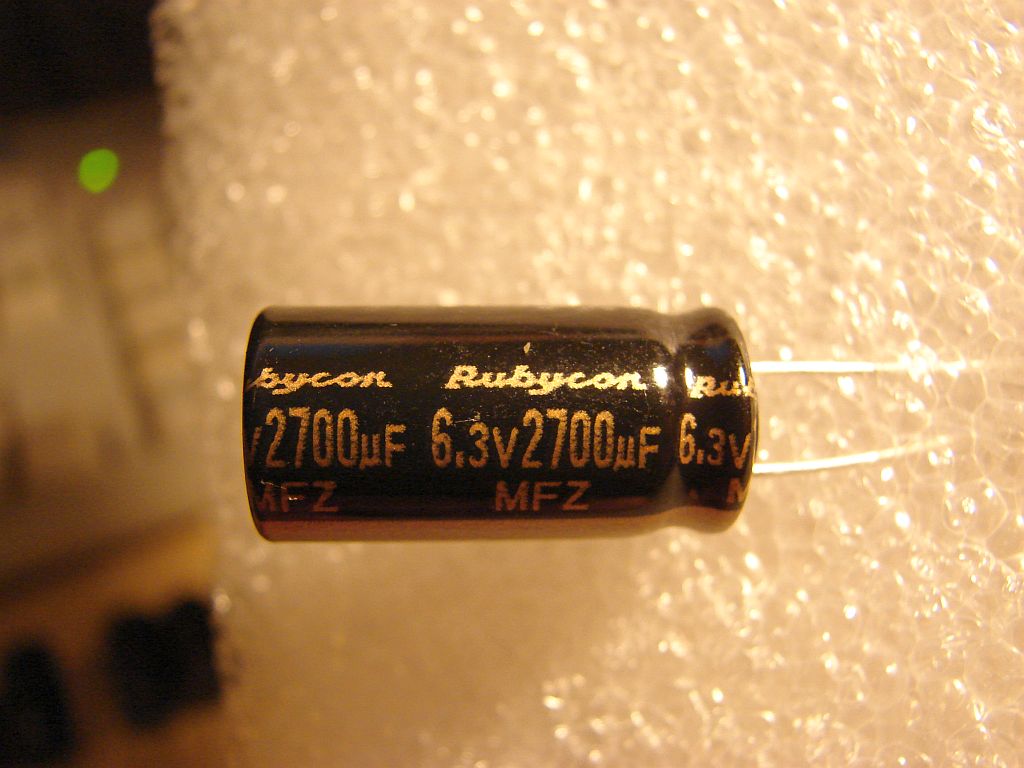

Rubycon MFZ | 2700µF | 6.3 V | 10 mm | 20 mm | ?0,007Ω | ? | 105 | ? | 0.75 € | 50 | Datasheet not found |
Rubycon MBZ | 2200µF | 6.3 V | 10 mm | 20 mm | 0,013Ω | 2550 | 105 | 2000 h | 0 | Can be added on request | |

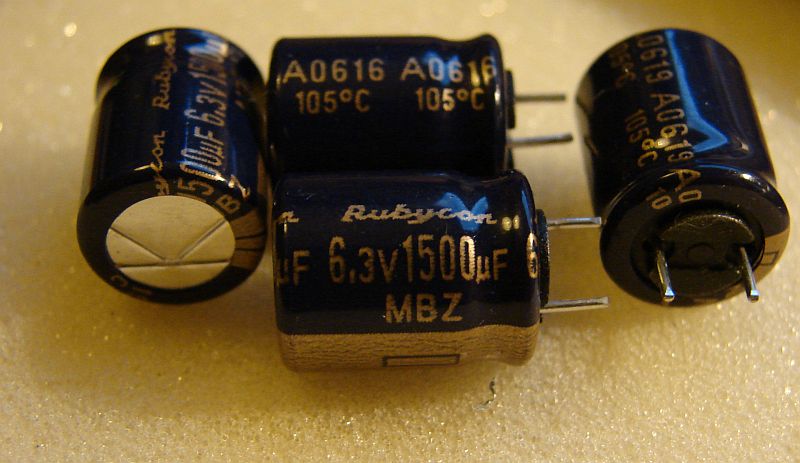

Rubycon MBZ | 1500µF | 6.3 V | 10 mm | 12,5mm | 0,026Ω | 1540 | 105 | 2000 h | 0.60 € | 170 | Ultra Low Impedance |
Rubycon ZL | 1000µF | 25 V | 12,5mm | 20 mm | 0.053Ω | 2360 | 105 | 5000 h | 0.60 | 80 | |

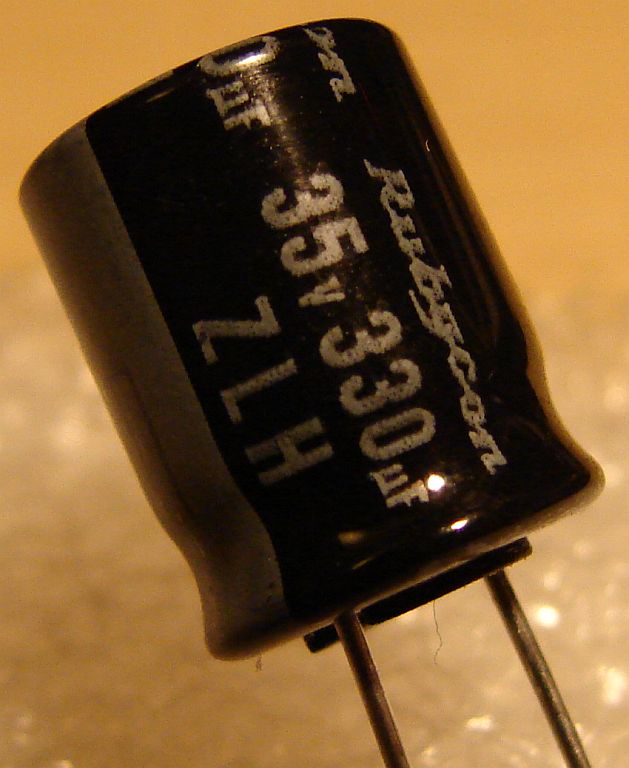

Rubycon ZLH | 330µF | 35 V | 10 mm | 12,5mm | 0.039Ω | 1330 | 105 | 10000 h | 0.40 € | 498 | Long Life Assurance, Low ESR |
MBZ Datasheet | MCZ Datasheet |
ZLH Datasheet | ZL Datasheet |
Type | Capacity | Voltage | Diameter | Height | ESR | Ripple | Temp | Load Life | Price | Stock | Note |

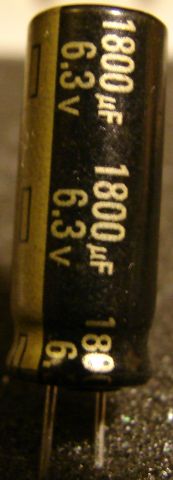

Panasonic FL | 1800µF | 6.3 V | 8 mm | 105 | 0.60 € | 500 | Datasheet not found | ||||
Panasonic FJ | 470µF | 16 V | 8 mm | 11.5 mm | 0.030Ω | 1140 | 105 | 2000 h | 0.40 € | 350 | |

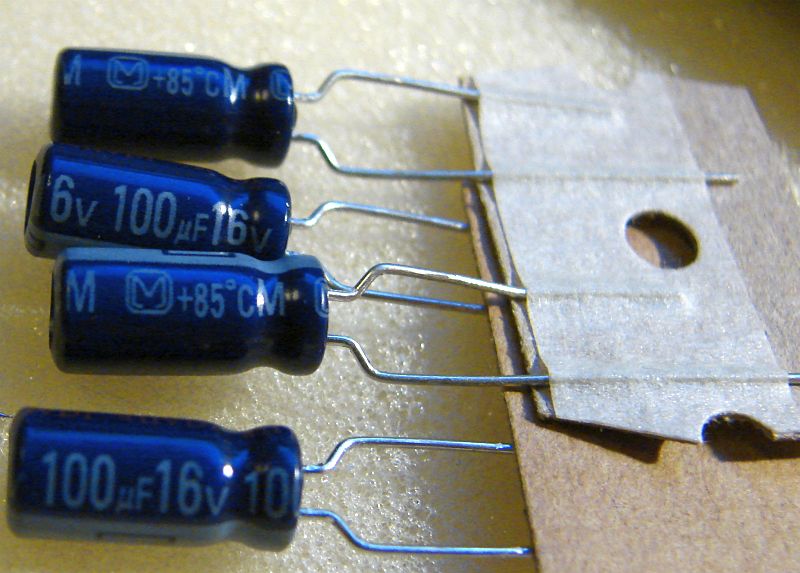

Panasonic ? | 100µF | 16 V | 85 | 0.20 € | 500 | 41IVD1 | |||||
Panasonic Pureism PX | 47µF | 16 V | 6.5 mm | 11.5 mm | 85 | 0.50 € | 118 | Pureism audio capacitors |
FJ Datasheet | |
Type | Capacity | Voltage | Diameter | Height | PCM | ESR | Ripple | Temp | Load Life | Price | Stock | Note |
Sanyo WG | 1500µF | 16 V | 10 mm | 20 mm | 0.013Ω | 2550 mA | 105 | 4000 h | 0.50 € | 40 | ||

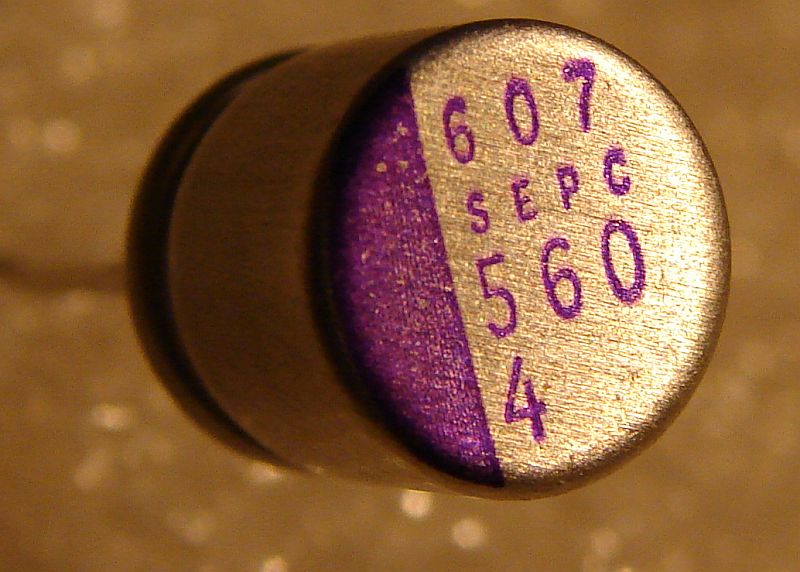

Sanyo Oscon SEPC | 560µF | 4 V | 8 mm | 9 mm | 0.007Ω | 6100 mA | 105 | 2000 h | 0.60 € | 80 | Conductive Polymer | |
Sanyo Oscon SEP | 330µF | 16 V | 10 mm | 13 mm | 5.0mm | 0.015Ω | 4720 mA | 105 | 3000 h | 1.20 € | 46 | Conductive Polymer |

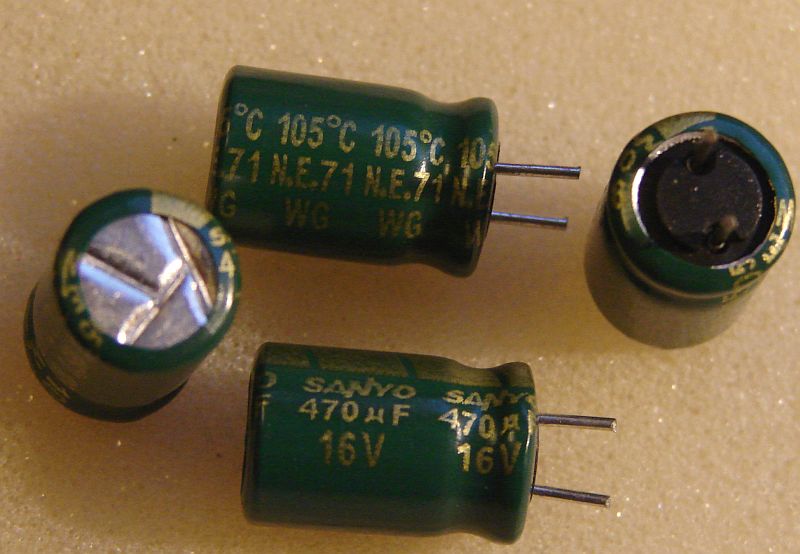

Sanyo WG | 470µF | 16 V | 0.036Ω | 1140 mA | 105 | 2000 h | 32 |
SEPC Datasheet | SP Datasheet | WG Datasheet |
Be careful with SP series as the leads can be too thick for some motherboards - graphics cards.
Type | Miscellaneous Components | Price | Stock | Note |
Battery Converter | Converts an AA penlite to D cell | 1.20 € | 40 | |
Battery Converter | Converts an AA penlite to C cell | 1.20€ | 40 | |

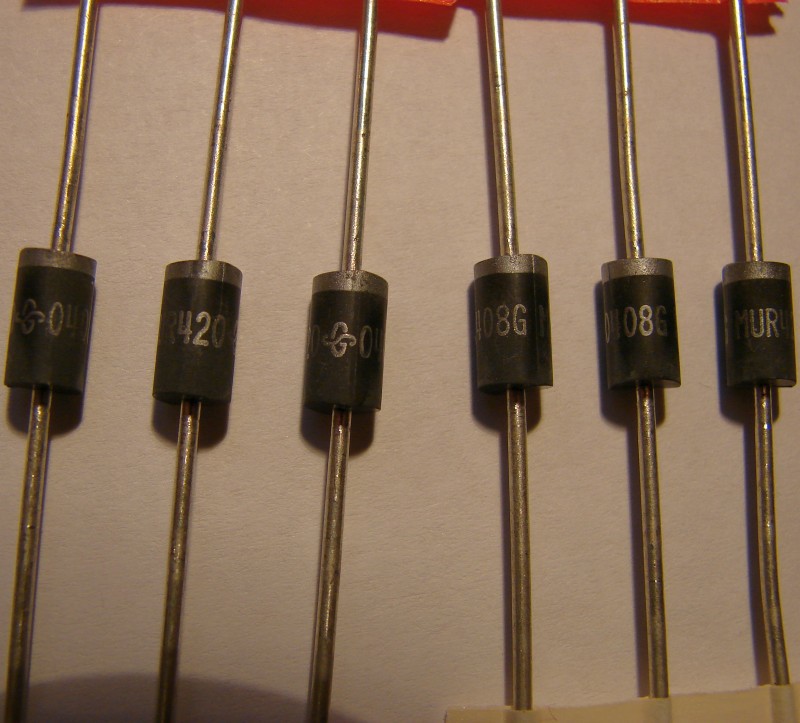

General Semiconductor | Ultra fast diode MUR420 (200V / 4 Amp.) | 0.30 € | 80 | |

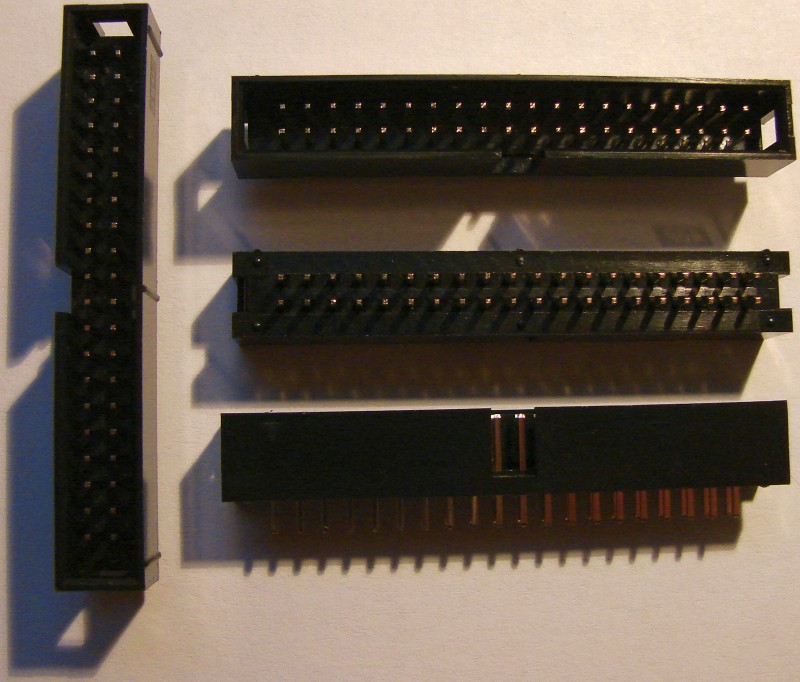

40Pin IDE Connector | 1.00 € | 4 |
Contact: hjpdijkstra(AT)gmail.com
Replace (AT) with @, This is because of spammers
with automated web crawlers.
